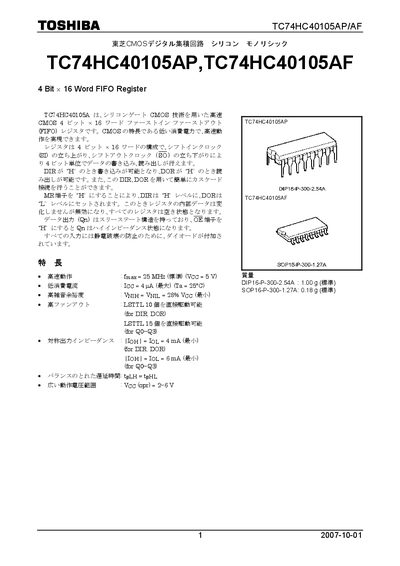

TC74HC40105AP/AF is a high-speed CMOS 4-bit × 16-word FIFO register produced by Toshiba. This register features low power consumption, high speed, high fan-out, and symmetrical output.
The Toshiba TC74HC40105AP/AF is a CMOS 4‑bit × 16‑word FIFO register built with silicon‑gate OMOS technology. It offers low power consumption, high speed operation up to 25 MHz, and flexible cascade connections for expanding word depth.
The document provides detailed pin configurations, logic diagrams, timing characteristics, absolute maximum ratings, DC and AC performance data, as well as package dimensions and handling guidelines. This manual is written in Japanese.
