TC7PA175FU D-Type Flip Flop with Clear is an integrated circuit produced by Toshiba, which has a working power supply voltage of 1.8~3.6 V, high speed operation and high output current.
The TC7PA175FU is a D‑type flip‑flop with clear function, offered in a 6‑lead SSOP package. It operates from a supply voltage of 1.8 V to 3.6 V and provides high‑speed performance with propagation delays as low as 3.5 ns.

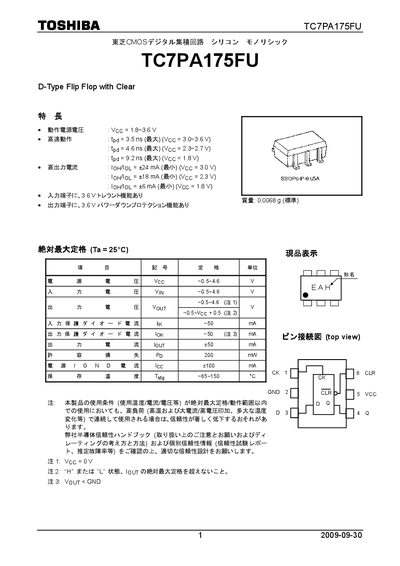

The datasheet includes pin configuration, logic diagram, truth table, electrical (DC and AC) characteristics, package dimensions, and handling instructions for reliable integration into electronic designs. This manual is written in Japanese.
| Operating supply voltage (Vcc) | 1.8 V – 3.6 V |
|---|---|
| Maximum propagation delay (pd) | 3.5 ns (Vcc = 3.0‑3.6 V) |
| Minimum output current (IOL/IOH) | +24 mA (Vcc = 3.0 V) |
| Power dissipation (Pp) | 200 mW |
| Storage temperature range (Tag) | -65 °C – 150 °C |
The device operates from 1.8 V to 3.6 V supply voltage.
The maximum propagation delay is 3.5 ns when Vcc is between 3.0 V and 3.6 V.
It can source or sink at least 24 mA (Vcc = 3.0 V).
The storage temperature range is –65 °C to 150 °C.
