TC74LVX14F/FT is a high-speed, low-voltage, low-noise, high-reliability Schmitt trigger device produced by Toshiba
The TC74LVX14F/FT is a high‑speed, low‑voltage Schmitt‑trigger inverter built with Toshiba's OMOS silicon‑gate technology. It offers low power consumption, fast operation, and input power‑down protection, making it suitable for 3 V systems, level‑shifting, and signal‑conditioning applications.

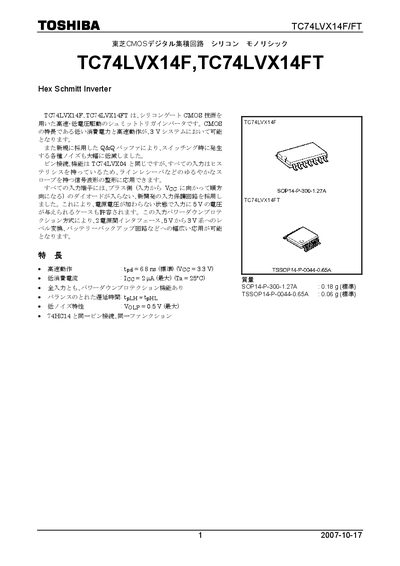

The document includes pin‑out diagrams, truth tables, absolute maximum ratings, operating ranges, DC/AC/noise characteristics, and package dimensions for both SOP‑14 and TSSOP‑14 variants. It also contains handling notes and legal usage information. This manual is written in Japanese.
| Supply voltage (Vcc) operating range | 2.0 V – 3.6 V |
|---|---|
| Input voltage (Vn) range | 0 V – 5.5 V |
| Propagation delay (tpd) | 6.8 ns (typical) |
| Quiescent current (Ioo) | 2 nA (max) |
| Output low voltage (VOL) at IOL = 50 nA | 0.1 V |
The device operates with a supply voltage between 2.0 V and 3.6 V.
The typical propagation delay is 6.8 ns.
