TC7WG125FU/FK is a dual bus buffer produced by Toshiba. It features high output current, ultra-high speed and low power consumption.
The TC7WG125FU/FK is a dual‑bus buffer IC with a three‑state output, designed for high‑speed operation. It offers a minimum output current of 8 mA at a 3 V supply and includes input‑over‑voltage and output‑power‑down protection features.

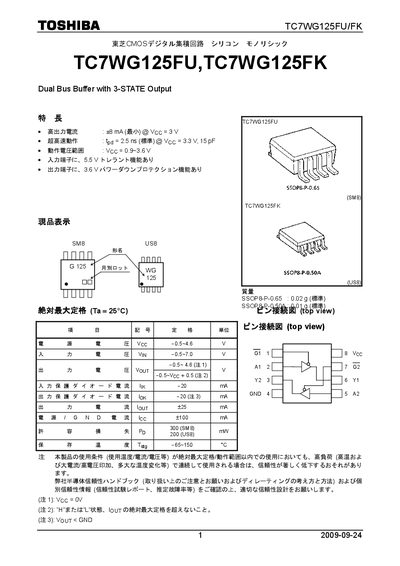

The document details the device's electrical parameters, such as operating voltage (0.9‑3.6 V), input and output voltage ranges, current limits, and storage temperature range. Package information for both the FU and FK variants (SSOP8‑P‑0.65 and SSOP8‑P‑0.50A) and pin‑out diagrams are also provided. This manual is written in Japanese.
| High output current | ≥8 mA (minimum) @ Vcc = 3 V |
|---|---|
| Operating voltage range | Vcc = 0.9‑3.6 V |
| Input voltage range | VN -0.5 V to 7.0 V |
| Supply/GND current (Icc) | ≤100 mA |
| Storage temperature | -65 °C to 150 °C |
The device can source at least 8 mA of output current when Vcc is 3 V.
It operates with a supply voltage (Vcc) from 0.9 V to 3.6 V.
The IC can be stored between –65 °C and +150 °C.
