TC74ACT112P/F is a high-speed CMOS JK flip-flop with low power consumption, high output current and balanced delay time produced by Toshiba.
The TC74ACT112P/F is a dual J‑K flip‑flop with preset and clear inputs, implemented in a 2‑layer metal, silicon‑gate CMOS process. It operates with TTL‑level inputs and includes protection diodes on all inputs.

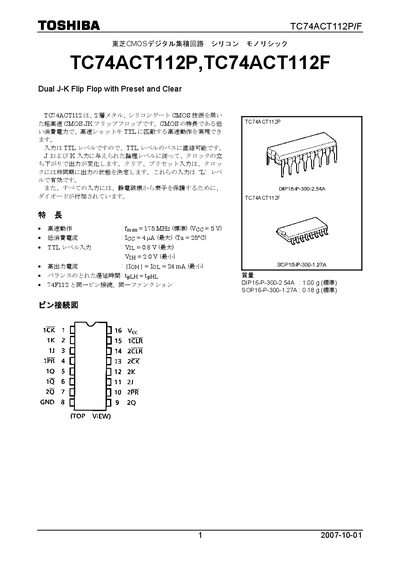

The document lists key specifications such as a maximum operating frequency of 175 MHz, a supply voltage range of 4.5‑5.5 V, TTL input thresholds, output current capabilities, and package dimensions for both DIP‑16 and SOP‑16 versions. It also contains absolute maximum ratings, recommended operating conditions, and handling guidelines. This manual is written in Japanese.
| Maximum operating frequency | 175 MHz |
|---|---|
| Supply voltage (operating range) | 4.5 V – 5.5 V |
| Package (DIP‑16) | DIP16‑P‑300‑2.54A |
| Package (SOP‑16) | SOP16‑P‑300‑1.27A |
| Mass (DIP‑16) | 1.00 g |
The IC is specified to operate with a supply voltage between 4.5 V and 5.5 V.
The device can operate up to 175 MHz.
