The ASRock 770M-ITX is a mini-ITX motherboard from ASRock, which supports Socket AM2+ / AM2 processors, supports up to 140W CPU, supports ATI™ CrossFire™, PCIE Gigabit LAN, 7.1-channel Windows® Vista™ Premium-class high-fidelity audio (VIA® VT1708S audio codec with QSound function), supports ASRock Instant Boot, supports intelligent BIOS, ASRock Overclock Regulator, Intelligent Power Saver, ASRock Extra ESD electrostatic protection safety design

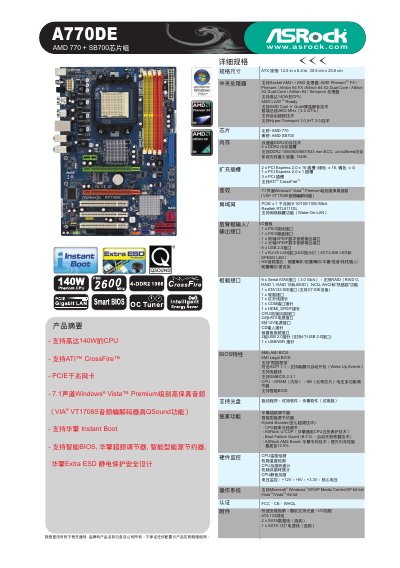

The ASRock A770DE is an ATX motherboard supporting Socket AM2+ and AM2 processors, including AMD Phenom, Athlon, and Sempron families. It features a dual‑channel DDR2 memory architecture with up to 16 GB across four slots and supports DDR2 1066/800/667/533 non‑ECC modules.
The board provides extensive connectivity: two PCI Express 2.0 ×16 slots, one PCI Express 2.0 ×1 slot, three PCI slots, six SATA II ports with RAID support, and a Realtek RTL8111DL gigabit LAN controller. Audio is handled by a VIA VT1708S codec with QSound, and the system includes ASRock’s Instant Boot technology for rapid startup. This manual is written in Chinese.
| CPU Socket | Socket AM2+ / AM2 |
|---|---|
| Supported CPUs | AMD Phenom, Athlon 64, Athlon X2, Sempron |
| Maximum Memory | 16 GB |
| Memory Slots | 4 x DDR2 |
| Memory Type | DDR2 1066/800/667/533 non‑ECC, un‑buffered |
| Chipset | AMD 770 (northbridge) / AMD SB700 (southbridge) |
| SATA Ports | 6 x Serial ATAII (3.0 Gb/s) with RAID 0/1/10/JBOD |
| Audio Codec | VIA VT1708S with QSound |
| Network Controller | Realtek RTL8111DL Gigabit Ethernet |
| Form Factor | ATX 12.0‑in × 8.2‑in (30.5 cm × 20.8 cm) |
| BIOS | AMI BIOS, 8 Mb |
It supports Socket AM2+ and Socket AM2 processors.
The board provides six Serial ATAII ports that support RAID 0, RAID 1, RAID 10, and JBOD.
