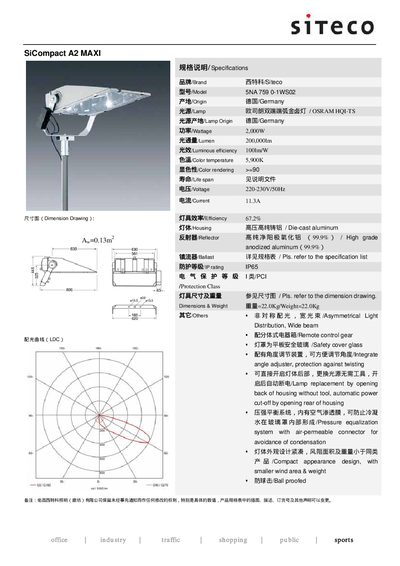

SiCompact A2 MAXI specification sheet, including brand, model, wattage, lumen, luminous efficiency, color temperature, color rendering, life span, voltage, current, housing efficiency, housing, reflector, ballast, IP rating, protection class, dimensions & weight, LDC, others.
This guide presents the technical specifications of the SiCompact A2 MAXI, including its 2,000 W power rating, 200,000 lm luminous flux, and 5,900 K color temperature. It also details the fixture's construction, such as the die‑cast aluminum housing and IP65 protection class.
Additional information covers dimensions, weight (22 kg), lamp replacement procedure (opening the rear without tools with automatic power cut‑off), and safety features like pressure equalisation and a safety cover glass.
| Wattage | 2,000 W |
|---|---|
| Luminous Flux | 200,000 lm |
| Luminous Efficiency | 100 lm/W |
| Color Temperature | 5,900 K |
| Color Rendering Index | ≥90 |
| Operating Voltage | 220‑230 V / 50 Hz |
| Current | 113 A |
| Overall Efficiency | 67.2 % |
| Housing Material | Die‑cast aluminum |
| Weight | 22.0 kg |
| IP Rating | IP65 |
| Protection Class | SR |
The fixture is rated at 2,000 W.
It has an IP65 protection rating.
The lamp can be replaced by opening the back of the housing without a tool; the unit automatically cuts power when the rear is opened.
The luminous efficiency is 100 lm/W.
