Start here

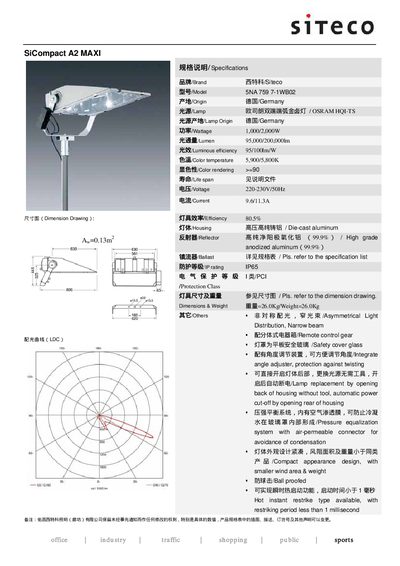

Siteco SiCompact A2 MAXI Product Leaflet
The SiCompact A2 MAXI is a compact, high‑grade lighting fixture designed for traffic, shopping, public and sports applications. It features a die‑cast aluminum housing with a symmetrical light distribution and a narrow beam.
Key specifications include a voltage range of 220‑230 V at 50 Hz, wattage options of 1 000 W to 2 000 W, IP65 protection, a weight of 26 kg, and colour temperatures of 5 800 K to 5 900 K. The fixture also incorporates safety features such as a protective glass cover, tool‑free lamp replacement, and an air‑permeable pressure‑equalisation system.
Siteco SiCompact A2 MAXI specifications
| Voltage | 220‑230 V / 50 Hz |
|---|---|
| Current | 9.6 A / 11.3 A |
| Wattage | 1 000 W – 2 000 W |
| Colour Temperature | 5 800 K – 5 900 K |
| Weight | 26.0 kg |
| Housing Material | Die‑cast aluminum (99.9 %) |
All Siteco SiCompact A2 MAXI documents by type
Questions answered in these manuals
What is the voltage rating of the SiCompact A2 MAXI?
The fixture operates at 220‑230 V, 50 Hz.
What wattage options are available?
The lamp can be configured for 1 000 W or 2 000 W.
What is the voltage rating of the SiCompact A2 MAXI?
It operates on 220‑230 V at 50 Hz.
How much does the SiCompact A2 MAXI weigh?
The fixture weighs 26.0 kg.
What is the wattage of the SiCompact A2 MAXI?
The fixture is rated at 2,000 W.
What IP rating does the SiCompact A2 MAXI have?
It has an IP65 protection rating.
