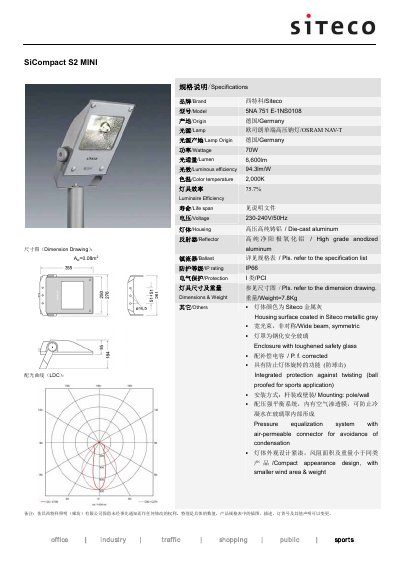

SiCompact S2 MINI is a German-made high-pressure sodium lamp with a power of 70W and a luminous flux of 6,600lm. It has high luminous efficiency and a long lifespan. The luminaire is made of high-grade die-cast aluminum and has an IP66 protection rating. It can be used in office, commercial, traffic, shopping, public, and sports applications.
The SiCompact S2 MINI is a compact sports lighting fixture designed for stadiums and other high‑performance venues. It uses an OSRAM NA V‑T lamp and incorporates a die‑cast aluminum housing with a toughened safety glass enclosure.
Key specifications include a 70 W power rating, 6,600 lm output, 94.3 lm/W luminous efficiency, 2,000 K color temperature, and IP66 protection. The unit weighs 7.8 kg, operates at 230‑240 V/50 Hz, and features a pressure‑equalization system to prevent condensation.
| Wattage | 70W |
|---|---|
| Luminous Flux | 6,600 lm |
| Luminous Efficiency | 94.3 lm/W |
| Color Temperature | 2,000 K |
| Voltage | 230‑240V/50Hz |
| Housing Material | Die‑cast aluminum |
| Weight | 7.8 kg |
| IP Rating | IP66 |
The fixture uses an OSRAM NA V‑T lamp.
It has an IP66 protection rating.
