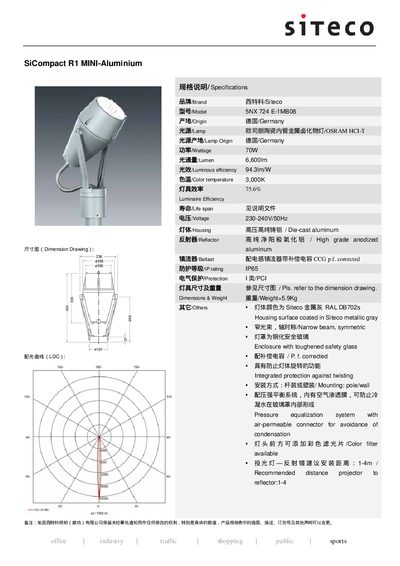

SiCompact R1 MINI-Aluminium is an outdoor road lamp from Siteco. The light source is an Osram ceramic inner tube metal halide lamp with a power of 70W, a luminous flux of 6,600lm, a luminous efficacy of 94.3lm/W, a color temperature of 3,000K and a luminaire efficiency of 75.6%
The SiCompact R1 MINI-Aluminium is a compact, die‑cast aluminum luminaire designed for indoor lighting applications. It features a high‑grade anodized aluminum reflector and a pressure‑equalization system to prevent condensation.
Key specifications include a 70 W power rating, 6 600 lm luminous flux, 94.3 lm/W efficiency, 3 000 K colour temperature, IP65 protection, and a weight of 5.9 kg. The recommended mounting distance from a projector to the reflector is 1–4 m.
| Wattage | 70 W |
|---|---|
| Luminous Flux | 6600 lm |
| Luminous Efficiency | 94.3 lm/W |
| Color Temperature | 3000 K |
| Voltage | 230-240 V, 50 Hz |
| Housing Material | Die-cast aluminum |
| Reflector Material | High grade anodized aluminum |
| IP Rating | IP65 |
| Weight | 5.9 kg |
| Luminaire Efficiency | 75.6 % |
The luminaire operates at 70 W.
It is rated IP65.
The recommended distance is 1–4 m.
