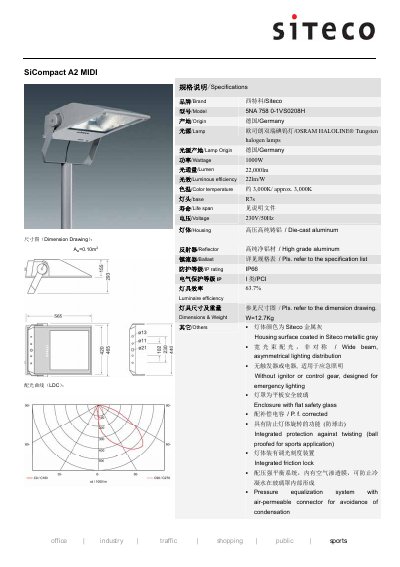

This document provides specifications and characteristics of the SiCompact A2 MIDI luminaire from the Siteco brand. The luminaire uses OSRAM HALOLINE® Tungsten halogen lamps as the light source, with a power of 1000W and a luminous flux of 22000lm. The color temperature is approximately 3000K. The luminaire has an IP66 protection rating and features a die-cast aluminum housing and a high-grade aluminum reflector. The dimensions and weight of the luminaire can be found in the dimension drawing. The luminaire offers wide beam, asymmetrical lighting distribution and is designed for emergency lighting without an ignitor or control gear. The enclosure is equipped with flat safety glass. The luminaire also has integrated protection against twisting, a friction lock, and a pressure equalization system to prevent condensation inside the glass enclosure.
The SiCompact A2 MIDI (model 5NA 758) is an emergency lighting luminaire designed for sports venues. It uses an OSRAM HALOLINE® tungsten‑halogen lamp (1000 W) with a base R7s and provides 22 000 lm of light at a colour temperature of about 3 000 K.
The housing is die‑cast aluminium with a high‑grade aluminium reflector, coated in Siteco metallic gray. It features an IP66 rating, integrated protection against twisting, a friction lock, and a pressure‑equalisation system to prevent condensation. Dimensions and weight are provided in the drawing (W=12.7 kg, area 0.10 m²). This manual is written in Chinese.
| Lamp type | OSRAM HALOLINE® Tungsten halogen |
|---|---|
| Wattage | 1000 W |
| Luminous flux | 22 000 lm |
| Luminous efficiency | 22 lm/W |
| Colour temperature | 3 000 K |
| Lamp base | R7s |
| Voltage | 230 V / 50 Hz |
| IP rating | IP66 |
| Luminaire efficiency | 63.7 % |
| Weight | 12.7 kg |
| Area | 0.10 m² |
It uses an OSRAM HALOLINE® tungsten‑halogen lamp.
The fixture consumes 1000 W of power.
It has an IP66 rating for dust and water protection.
