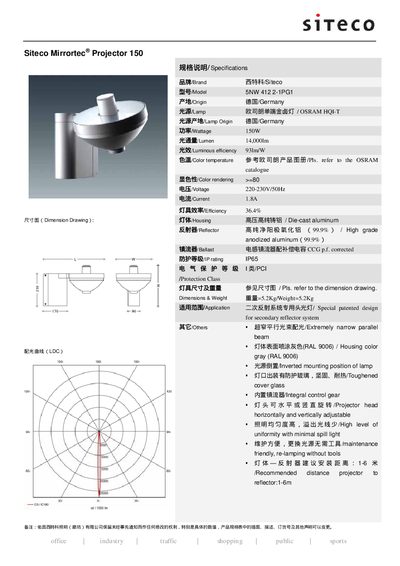

This document provides specifications and features of the Siteco Mirrortec® Projector 150, a German brand product. The projector uses OSRAM HQI-T single-ended metal halide lamp with a wattage of 150W, a luminous flux of 14,000lm, a luminous efficiency of 93lm/W, and a color temperature referred to the OSRAM catalogue. The housing is made of high-pressure high-purity die-cast aluminum, and the reflector is made of high-grade anodized aluminum. The projector has an IP65 rating for protection and a PCI rating for electrical protection. The dimensions and weight are as per the dimension drawing, with a weight of 5.2Kg. It is designed for use as a special patented design for a secondary reflector system.
The Mirrortec Projector 150 from Siteco is a high‑output projection device designed for large‑venue installations. It features a patented secondary reflector system and an extremely narrow parallel beam for uniform illumination.
The leaflet lists electrical ratings, lamp type, luminous efficiency, housing material, IP65 protection, weight, and recommended installation distance, giving installers and users a quick reference to the projector’s core parameters.
| Lamp type | OSRAM HQL‑T |
|---|---|
| Wattage | 150 W |
| Luminous flux | 14,000 lm |
| Luminous efficiency | 931 lm/W |
| Color rendering index | ≥ 80 |
| Input voltage | 220‑230 V / 50 Hz |
| Input current | 1.8 A |
| Overall efficiency | 36.4 % |
| Housing material | Die‑cast aluminum |
| Reflector material | High‑grade anodized aluminum (99.9 %) |
| Protection class | IP65 |
| Weight | 5.2 kg |
| Recommended distance | 1‑6 m |
It uses an OSRAM HQL‑T lamp.
The projector delivers a luminous flux of 14,000 lumens.
The recommended distance from the projector to the reflector is 1 to 6 meters.
