SiCompact R2 MAXI is a high-power outdoor luminaire from the Siteco brand in Germany. Its maximum power is 2,000W, the luminous flux is 200,000lm, and the color rendering is Ra>90/1A.
The SiCompact R2 MAXI is a high‑bay luminaire designed for industrial spaces. It uses a 2,000 W lamp that delivers 200,000 lm of light with a luminous efficiency of 100 lm/W and a color temperature of 5,800 K. The fixture is rated IP65, has a robust die‑cast aluminum housing, and includes integrated protection against twisting and vibration damping.

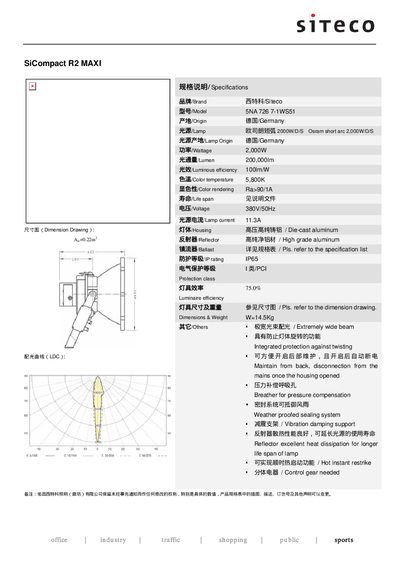

The manual provides the dimension drawing, electrical data (380 V/50 Hz, 11.3 A lamp current), mounting guidelines, and safety precautions such as disconnecting the mains before opening the housing. Weight is 14.5 kg and the luminaire is suitable for extremely wide beam applications.
| Wattage | 2,000 W |
|---|---|
| Luminous Flux | 200,000 lm |
| Luminous Efficiency | 100 lm/W |
| Color Temperature | 5,800 K |
| Color Rendering Index | Ra > 90 |
| Voltage | 380 V / 50 Hz |
| Lamp Current | 11.3 A |
| Housing Material | Die‑cast aluminum |
| Protection Class | IP65 |
| Weight | 14.5 kg |
The fixture is rated at 2,000 W.
It is rated IP65 for protection against dust and water.
It delivers a luminous flux of 200,000 lm.
The luminaire operates at 380 V and 50 Hz.
