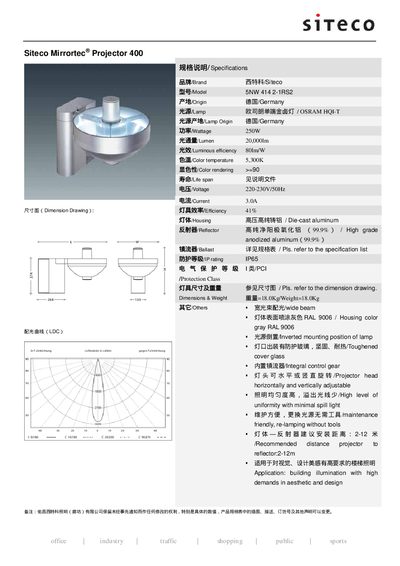

This document provides specifications for the Siteco Mirrortec® Projector 400, including information about the lamp, wattage, luminous efficiency, color temperature, and lifespan.
This guide presents the technical specifications of the Siteco Mirrortec Projector 400, including lamp wattage, luminous flux, color temperature, and electrical requirements. It also details the projector's dimensions, weight, housing material, and IP65 protection rating.
Installation information covers recommended mounting positions, adjustable projector head, recommended distance of 2‑12 m, and maintenance-friendly features such as tool‑free re‑lamps. The document outlines typical applications like building illumination for offices, traffic areas, shopping centers, and public sports venues.
| Lamp wattage | 250 W |
|---|---|
| Luminous flux | 20,000 lm |
| Luminous efficiency | 80 lm/W |
| Color temperature | 5,300 K |
| Color rendering index | ≥ 90 |
| Operating voltage | 220‑230 V / 50 Hz |
| Operating current | 3.0 A |
| Electrical efficiency | 41 % |
| Housing material | Die‑cast aluminum |
| Weight | 18.0 kg |
| IP rating | IP65 |
| Recommended mounting distance | 2‑12 m |
The projector uses a 250 W lamp.
It provides a luminous flux of 20,000 lumens.
The recommended distance is between 2 m and 12 m.
