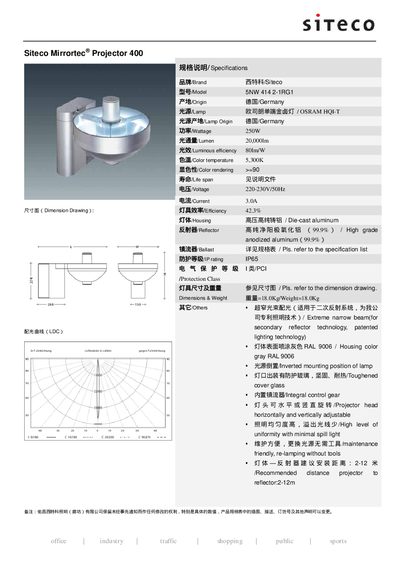

Siteco Mirrortec Projector 400 Specification Sheet
The Mirrortec Projector 400 is a high‑brightness projector designed for large‑venue installations. It features a 250 W OSRAM HQLT lamp, 20 000 lm output, and a high luminous efficiency of 801 lm/W, delivering bright, uniform images.
The sheet provides detailed technical data, including power requirements (220‑230 V/50 Hz, 3.0 A), IP65 protection, a die‑cast aluminum housing, and a recommended projector‑to‑reflector distance of 2‑12 m. The unit weighs 18 kg and is maintenance‑friendly, allowing lamp replacement without tools.
Siteco Mirrortec Projector 400 specifications
| Lamp type | OSRAM HQLT |
|---|---|
| Lamp origin | Germany |
| Wattage | 250 W |
| Lumen output | 20,000 lm |
| Luminous efficiency | 801 lm/W |
| Color temperature | 5,300 K |
| Color rendering index | ≥90 |
| Voltage | 220‑230 V / 50 Hz |
| Current | 3.0 A |
| Efficiency | 42.3 % |
| Housing material | Die‑cast aluminum |
| Reflector material | High‑grade anodized aluminum (99.9 %) |
| IP rating | IP65 |
| Weight | 18.0 kg |
| Recommended distance | 2‑12 m |
All Siteco Mirrortec Projector 400 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of lamp does the Siteco Mirrortec Projector 400 use?
It uses an OSRAM HQLT lamp.
How much light output does the projector provide?
The projector delivers a luminous output of 20,000 lm.
What is the lamp wattage of the Siteco Mirrortec Projector 400?
The projector uses a 250 W lamp.
What is the recommended distance between the projector and the screen?
The recommended distance is 2 to 12 meters.
What is the lamp wattage of the Mirrortec Projector 400?
The projector uses a 250 W lamp.
What is the luminous flux output of the projector?
It provides a luminous flux of 20,000 lumens.
