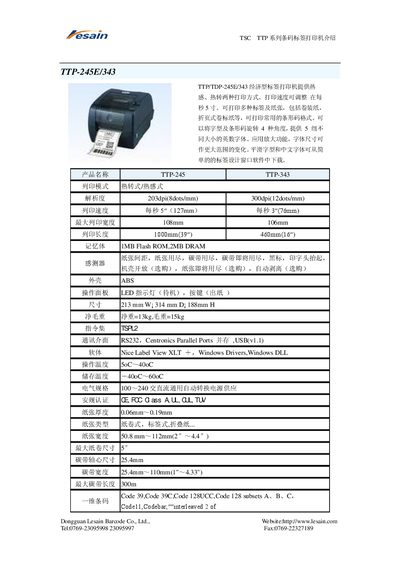

TSC TTP/TDP-245E/343 economic label printer provides thermal and thermal transfer printing methods, can print common bar code formats, can rotate font and bar code in 4 angles, provide 5 sets of different size English and number fonts, application magnification function, font size can be changed more widely. Smooth fonts and Chinese fonts can be downloaded from a simple label design window software.
This manual provides an overview of the TSC TTP series barcode label printers, including the TTP-245 and TTP-343 models. It describes the printing modes, supported barcode symbologies, and available fonts, as well as basic setup and operation procedures.
Technical details such as resolution, print speed, media dimensions, memory configuration, sensor functions, and interface options (RS‑232, Parallel, USB) are listed, along with environmental specifications and power requirements. The document also includes contact information for Dongguan Lesain Barcode Co., Ltd., the distributor. This manual is written in Japanese.
| Print mode | 各往式/苑感式 |
|---|---|
| Resolution | 203 dpi (8 dots/mm) for TTP‑245, 300 dpi (12 dots/mm) for TTP‑343 |
| Print speed | 127 mm/s (TTP‑245), 377 mm/s (TTP‑343) |
| Maximum print width | 108 mm (TTP‑245), 106 mm (TTP‑343) |
| Media width | 1000 mm (TTP‑245), 460 mm (TTP‑343) |
| Memory | 1 MB Flash ROM, 2 MB DRAM |
| Interface | RS‑232, Centronics Parallel Port, USB v1.1 |
| Operating temperature | -20 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Power supply | 100 V – 240 V AC |
| Minimum label thickness | 0.10 mm – 0.19 mm |
| Maximum label length | 800 m |
The printers provide RS‑232, Centronics parallel port, and USB v1.1 interfaces.
The TTP‑245 prints at 203 dpi (8 dots/mm) and the TTP‑343 prints at 300 dpi (12 dots/mm).
They operate from –20 °C up to 40 °C.
