The Lesain ARGOX R-268 series barcode label printer is an industrial-grade, high-speed, high-value product suitable for the postal, medical management, clothing, shoes, jewelry, hardware, manufacturing, and logistics industries. The product uses heat transfer/heat sensitive printing, with a resolution of 203dpi and a printing speed of 2~3 IPS. It can be equipped with 300M carbon tape and 200M labels.
The Lesain R-268 is an industrial‑grade barcode label printer designed for commercial and manufacturing use. It features a built‑in 16‑bit CPU, large memory, and a compact design with a paper‑roll centering structure and movable label sensor for easy operation.

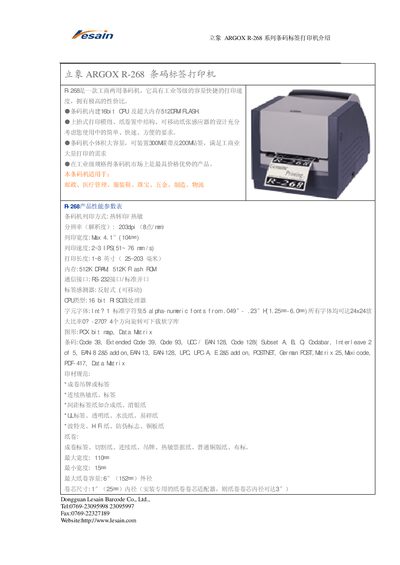

The manual lists the printer’s technical specifications, including printing methods (thermal transfer and thermal direct), resolution, print speed, media options, and communication interfaces. It also details supported barcode symbologies, font options, and compatible ribbon and paper types. This manual is written in Chinese.
| Printing method | Thermal transfer / Thermal direct |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print width | 4.1 in (104 mm) |
| Print speed | 2–3 IPS (51–76 mm/s) |
| Memory | 512 KB DRAM, 512 KB Flash ROM |
| CPU | 16‑bit RISC microprocessor |
| Communication interfaces | RS‑232 and standard parallel port |
| Maximum paper roll width | 110 mm |
| Maximum paper roll capacity | 6 in (152 mm) outer diameter |
It supports both thermal transfer and thermal direct (thermal‑sensitive) printing.
The printer can print up to 4.1 inches (104 mm) wide.
It provides an RS‑232 serial port and a standard parallel port.
The printer accepts thermal transfer ribbons (wax, resin, mixed), thermal‑sensitive paper, label rolls, and various specialty papers.
