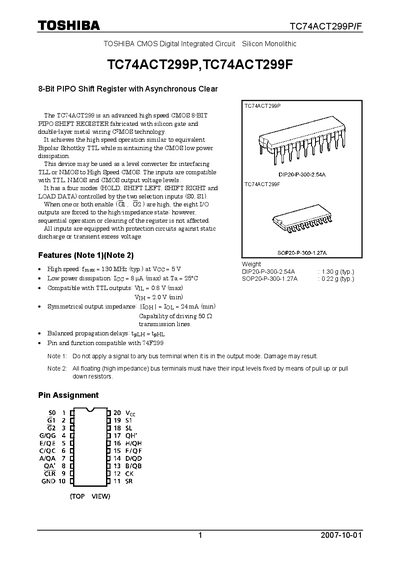

TC74ACT299P/F is a high-performance CMOS 8-bit PIPO shift register produced by TOSHIBA. It has high speed and low power consumption, and can be used as a TTL or NMOS to high-speed CMOS interface converter.
The TC74ACT299P/F is an 8‑bit parallel‑in‑parallel‑out shift register fabricated with Toshiba's C2MOS technology. It offers high‑speed operation comparable to bipolar Schottky TTL while maintaining low CMOS power dissipation, making it suitable as a level converter for TTL, NMOS, or CMOS interfaces.
The document provides detailed specifications, including absolute maximum ratings, operating ranges, electrical characteristics, package dimensions for DIP20 and SOP20 versions, and usage restrictions. It also includes pin assignments, timing diagrams, and notes on reliability and handling.
| Maximum operating frequency | 130 MHz (typ.) |
|---|---|
| Supply voltage range | -0.5 V to 7.0 V |
| Power dissipation (DIP package) | 500 mW |
| Package weight (DIP20) | 1.30 g (typ.) |
The device can operate up to 130 MHz typical.
It supports a supply voltage from –0.5 V to 7.0 V.
The DIP20 package weighs about 1.30 g typical.
Up to 500 mW of power can be dissipated in the DIP version.
