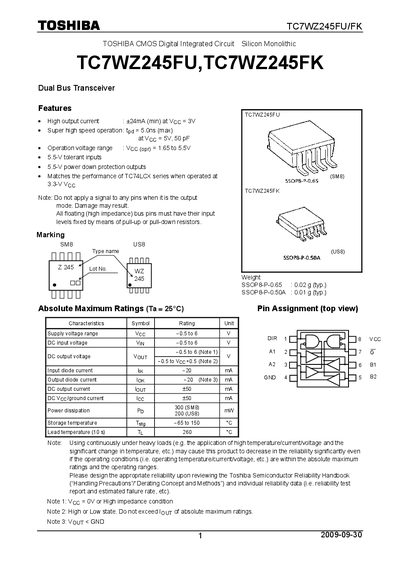

The TC7WZ245FU/FK is a dual bus transceiver produced by Toshiba. It has high output current (±24mA), super high speed operation (tpd=5.0ns) and 5.5V tolerant inputs.
The TC7WZ245FU/FK is a Toshiba CMOS dual‑bus transceiver designed for general electronics applications such as computers, office equipment, and industrial robots. It offers high output current and fast propagation delay while supporting a wide supply voltage range.
Key specifications include a minimum high‑output current of +24 mA at 3 V, a supply range of 1.65 V to 5.5 V, and a propagation delay of 5 ns (max) at 5 V with 50 pF load. The device is supplied in SSOP8 packages (0.65 mm or 0.50 mm pitch) and includes detailed reliability and usage restrictions for safety‑critical applications.
| High output current | +24 mA (min) at Vcc = 3 V |
|---|---|
| Supply voltage range | 1.65 V to 5.5 V |
| Propagation delay (tpg) | 5 ns (max) at Vcc = 5 V, 50 pF |
| Package dimensions (SSOP8‑P‑0.65) | 2.94 mm × 0.1 mm, 0.65 mm pitch |
The device operates from 1.65 V up to 5.5 V.
It can source a minimum of +24 mA at a 3 V supply.
The specified operating temperature range is –40 °C to 85 °C.
