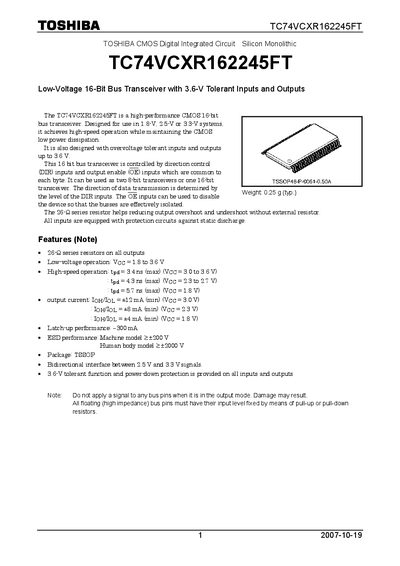

The TC74VCXR162245FT is a high-performance CMOS 16-bit bus transceiver produced by Toshiba Corporation. This transceiver is designed for use in 1.8-V, 2.5-V or 3.3-V systems, while maintaining CMOS low power dissipation and achieving high-speed operation. It is also designed with overvoltage tolerant inputs and outputs up to 3.6 V. This 16 bit bus transceiver is controlled by direction control (DIR) inputs and output enable (OE) inputs which are common to each byte. It can be used as two 8-bit transceivers or one 16-bit transceiver. The direction of data transmission is determined by the level of the DIR inputs. The OE inputs can be used to disable the device so that the busses are effectively isolated. The 26-Ω series resistor helps reducing output overshoot and undershoot without external resistor. All inputs are equipped with protection circuits against static discharge.
The TC74VCXR162245FT is a high‑performance CMOS 16‑bit bus transceiver designed for 1.8 V, 2.5 V or 3.3 V systems with 3.6‑V tolerant inputs and outputs. It features direction control (DIR) and output enable (OE) pins, allowing operation as two 8‑bit transceivers or a single 16‑bit device.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, package dimensions, and usage restrictions. It also includes pin assignments, truth tables, and dynamic switching parameters for designers.
| Maximum output current | +12 mA (min) |
|---|---|
| Package type | TSSOP |
| Typical weight | 0.25 g |
| Propagation delay (tpd) | 3.4 ns (max) |
| ESD rating (Human body model) | +2000 V |
| Power dissipation (Pp) | 400 mW |
| Operating temperature range | -40 °C to 85 °C |
Each output can source or sink up to 12 mA (minimum guaranteed).
It is supplied in a TSSOP package.
The typical weight is 0.25 g.
