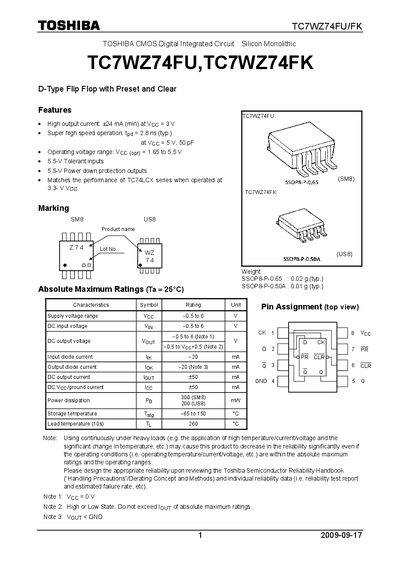

TC7WZ74FU/FK is a D-Type Flip Flop with Preset and Clear chip produced by Toshiba. Its features include high output current, super high speed operation, wide operating voltage range, 5.5-V Tolerant inputs, 5.5-V Power down protection outputs, etc.
The TC7WZ74FU/FK is a D‑type flip‑flop with preset and clear functions, offering high output current and a wide operating voltage range. It is supplied in SSOP‑8 packages (0.65 mm and 0.50 mm pitch) and is intended for general electronics applications such as computers, office equipment, and industrial robots.
The document lists absolute maximum ratings, detailed DC and AC electrical characteristics, package dimensions, and restrictions on product use. Designers are advised to consult Toshiba’s Semiconductor Reliability Handbook for derating and reliability considerations.
| High output current | +24 mA (min) at Vcc = 3 V |
|---|---|
| Operating voltage range | 1.65 V to 5.5 V |
| Input voltage range | 0 V to 5.5 V |
| Operating temperature | -40 °C to 85 °C |
| Package type (0.65 mm pitch) | SSOP8‑P‑0.65 |
| Package weight (0.65 mm pitch) | 0.02 g (typ.) |
| Package weight (0.50 mm pitch) | 0.01 g (typ.) |
The device operates from –40 °C up to 85 °C.
It can deliver a minimum of +24 mA high‑output current at Vcc = 3 V.
