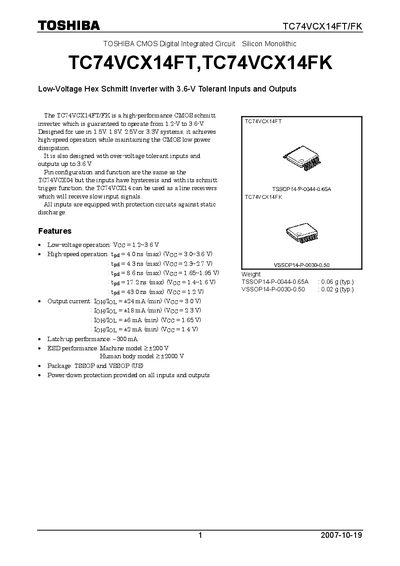

The TC74VCX14FT/FK is a low-voltage hex schmitt inverter produced by TOSHIBA. Its features are: operating voltage between 1.2V to 3.6V, high speed, low power consumption, and over-voltage protection.
The TC74VCX14FT/FK is a low‑voltage hex Schmitt inverter designed for operation from 1.2 V to 3.6 V. It offers high‑speed switching with propagation delays as low as 4 ns and includes over‑voltage‑tolerant inputs and outputs. The device can be used as a line‑receiver and features static‑discharge protection on all inputs.
The document lists absolute maximum ratings, operating ranges, DC and AC electrical characteristics, dynamic switching behavior, and package dimensions. It also contains a detailed pin assignment, truth table, system diagram, and legal restrictions on product use.
| Supply voltage range | 1.2 V – 3.6 V |
|---|---|
| Propagation delay (typical) | 4.0 ns max (Vcc = 3.0‑3.6 V) |
| Output current (high) | +24 mA min (Voc = 3.0 V) |
| Power dissipation | 180 mW |
| Package type | VSSOP14‑P‑0030‑0.50 (mm) |
| Weight | 0.02 g typ. |
It operates from 1.2 V up to 3.6 V.
The propagation delay is up to 4.0 ns when Vcc is between 3.0 V and 3.6 V.
The high‑level output current is at least +24 mA at a supply voltage of 3.0 V.
