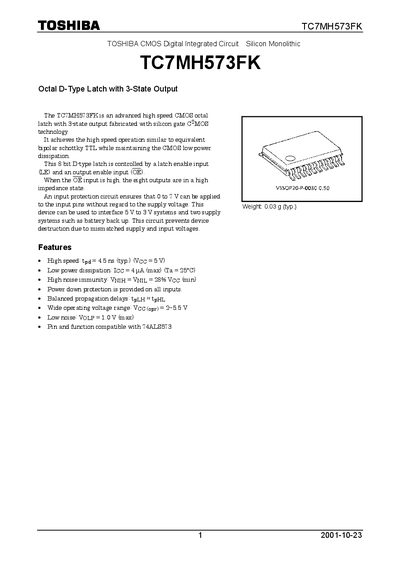

The TC7MH573FK is an advanced high speed CMOS octal latch with 3-state output fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.
The TC7MH573FK is an octal D‑type latch with 3‑state outputs, offering high‑speed operation comparable to bipolar Schottky TTL while maintaining low CMOS power dissipation. It features a wide operating voltage range (2.0‑5.5 V), low input leakage, and protection against mismatched supply and input voltages.
The document lists detailed pin assignments, truth tables, maximum ratings, recommended operating conditions, electrical and timing characteristics, noise performance, package dimensions, and usage restrictions for safe design integration.
| Supply voltage range | -0.5 V to 7.0 V |
|---|---|
| Power dissipation | 180 mW |
| Storage temperature | -65 °C to 150 °C |
| Package type | VSSOP20‑P‑0030‑0.50 |
| Weight | 0.03 g (typ.) |
The device can operate with a supply voltage from –0.5 V up to 7.0 V.
It is supplied in a VSSOP20‑P‑0030‑0.50 surface‑mount package.
The maximum power dissipation is rated at 180 mW.
