This document introduces the technical specifications and performance characteristics of the Emerson brand's semi-hermetic piston compressor CH-1500. This compressor is suitable for R22 refrigerant and has a nominal input power of 15HP. The discharge port and suction port sizes are 1-1/8 inch and 1-1/2 inch respectively. The dimensions of the compressor are 800mm in length, 356mm in width, and 431mm in height, with a net weight of 181kg and a gross weight of 192kg. Specific technical parameters include starting current, maximum operating current, displacement, oil charging, etc. The document also provides dimension and wiring diagrams of the compressor, as well as application guidelines and configuration information.

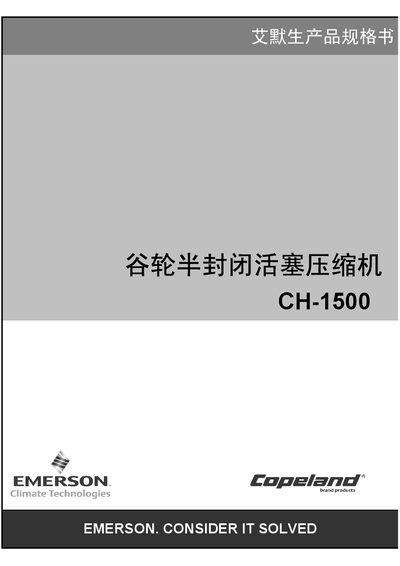

This product leaflet provides the technical specifications, performance curves, wiring diagram and physical dimensions for the Emerson CH-1500 semi‑hermetic reciprocating compressor. It includes nominal power, cylinder count, bore‑stroke, displacement, and weight data, as well as standard and optional configurations such as a spring foot and crankcase heater.
The document also shows the nameplate details, electrical code options, and recommended application guidance, directing users to the C‑series compressor usage manual for further information. This manual is written in Chinese.
| Nominal Power (HP) | 15 |
|---|---|
| Bore x Stroke (mm) | 64 x 64 |
| Displacement | 54 |
| Discharge Port Size | 1‑1/8" |
| Length (mm) | 800 |
| Width (mm) | 356 |
| Height (mm) (without fan) | 431 |
| Net Weight (kg) | 181 |
| Gross Weight (kg) | 192 |
| Oil Charging (L) | 48 |
The CH‑1500 has a nominal power of 15 HP.
The unit measures 800 mm in length, 356 mm in width and 431 mm in height (without fan).
Standard configuration includes a spring foot and a crankcase heater; optional accessories are a cooling fan and a hard foot.
