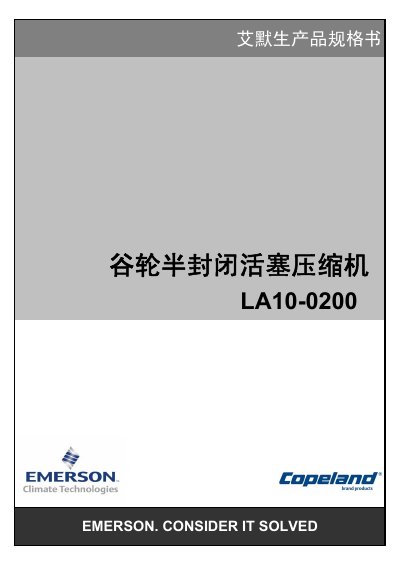

This document is a product specification sheet for the semi-hermetic piston compressor by Emerson brand. The document provides information about the specifications, technical data, performance parameters, and application guidelines of the product.
This specification sheet for the Emerson LA10-0200 semi‑hermetic reciprocating compressor includes detailed technical parameters such as nominal power, cylinder count, bore‑stroke dimensions, and crankcase heater power. It also lists the mounting size, oil charging volume, displacement, and minimum motor cooling airflow.
Additional sections cover performance data, operating envelope, a wiring diagram with electrical connections, dimensional drawings, and application guidelines for suction and discharge piping, high‑pressure fittings, and oil heater installation. This manual is written in Chinese.
| Length | 460 mm |
|---|---|
| Width | 330 mm |
| Height (without fan) | 385 mm |
| Height (with fan) | 555 mm |
| Net Weight | 77 kg |
| Gross Weight | 85 kg |
| Model | LA10-0200R22 |
The model number is LA10-0200R22.
The compressor measures 460 mm in length, 330 mm in width, 385 mm in height without the fan, and 555 mm with the fan.
The net weight is 77 kg.
