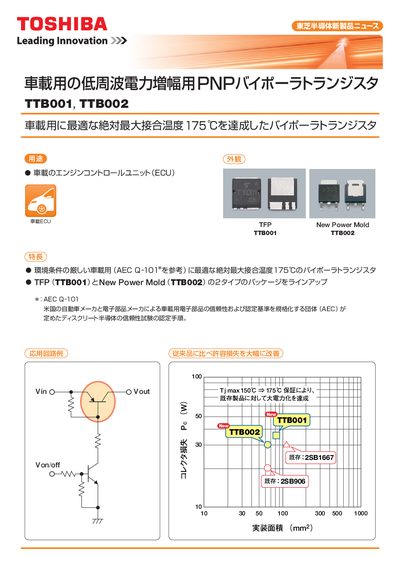

TTB001, TTB002 are Toshiba Semiconductor's low-power PNP bipolar transistors suitable for automotive applications. They have a maximum absolute junction temperature of 175℃ and are available in TFP and New Power Mold packages. Applications include automotive engine control units (ECUs).
The TTB001 and TTB002 are low‑frequency power‑amplification PNP bipolar transistors intended for automotive engine control units (ECU). They achieve an absolute maximum junction temperature of 175 °C, meeting the stringent reliability requirements of automotive environments.
Two package types are offered: the TFP package (TTB001) and the New Power Mold package (TTB002). The document also includes legal and safety notices regarding proper use, reliability testing standards, and export compliance. This manual is written in Japanese.
| Device type | PNP bipolar transistor |
|---|---|
| Maximum junction temperature | 175 °C |
| Package options | TFP (TTB001) and New Power Mold (TTB002) |
The absolute maximum junction temperature is 175 °C.
The TTB001 is offered in a TFP package, and the TTB002 in a New Power Mold package.
