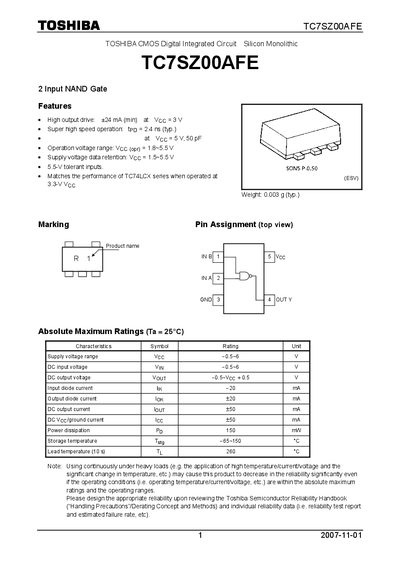

TC7SZ00AFE is a 2-input NAND gate manufactured by Toshiba with the characteristics of high output drive, super high speed operation, wide operating voltage range, supply voltage data retention and so on.
The TC7SZ00AFE is a CMOS digital integrated circuit that implements a 2‑input NAND gate. It offers a high output drive of +24 mA at 3 V, a typical propagation delay of 2.4 ns, and operates from 1.8 V to 5.5 V supply voltage. The device is packaged in a SOT‑23‑5 (SONS‑P‑0.50) package weighing only 0.003 g.
The IC is intended for general electronics applications such as computers, office equipment, industrial robots, and consumer electronics. Toshiba advises designers to follow its Semiconductor Reliability Handbook and to avoid using the part in high‑temperature or high‑stress conditions that could degrade reliability.
| Output drive current | +24 mA (min) at Voc=3 V |
|---|---|
| Propagation delay (typ.) | 2.4 ns |
| Supply voltage range | 1.8 V – 5.5 V |
| Operating temperature | -40 °C – 85 °C |
| Power dissipation | 150 mW |
| Weight | 0.003 g (typ.) |
The absolute maximum supply voltage rating is -0.5 V to 6 V.
It can drive a minimum of +24 mA at a 3 V output voltage.
The recommended operating temperature range is –40 °C to 85 °C.
Continuous heavy load may significantly reduce reliability.
