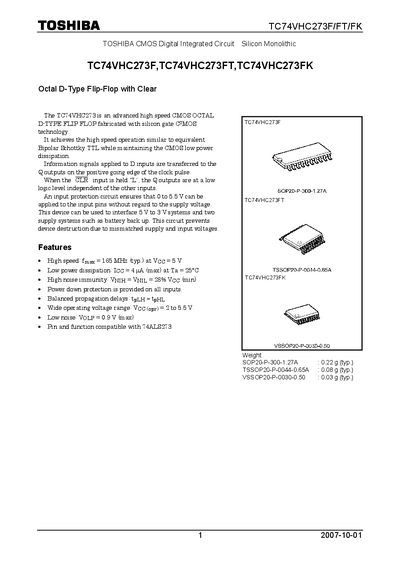

The TC74VHC273 is an advanced high speed CMOS OCTAL D-TYPE FLIP FLOP fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.
The TC74VHC273F/FT/FK is a high‑speed CMOS octal D‑type flip‑flop with clear, offering TTL‑like performance with low power dissipation. It is pin‑compatible with the 74ALS273 and includes features such as balanced propagation delays, wide operating voltage range (2‑5.5 V), and power‑down protection on all inputs.
The document details absolute maximum ratings, operating ranges, DC and AC electrical characteristics, noise performance, and package dimensions for SOP20, TSSOP20, and VSSOP20 variants. It also contains usage restrictions and legal notices for product integration.
| Maximum operating frequency (fmax) | 165 MHz (typ.) |
|---|---|
| Supply voltage (operating range) | 2.0 V to 5.5 V |
| Supply voltage (absolute max) | 0.5 V to 7.0 V |
| Quiescent current (Icc) | 4 µA (max) at 25 °C |
| Power dissipation | 180 mW |
| Input high voltage (VIH) | 3.0 V (typ.) |
| Input low voltage (VIL) | 0.5 V (typ.) |
| Package weight (SOP20) | 0.22 g (typ.) |
The device can operate up to 165 MHz typical speed.
The normal operating supply voltage is 2.0 V to 5.5 V.
Yes, the pins and functions are compatible with the 74ALS273.
Absolute maximum ratings include supply voltage 0.5 V to 7.0 V, input voltage 0.5 V to 7.0 V, and power dissipation 180 mW.
