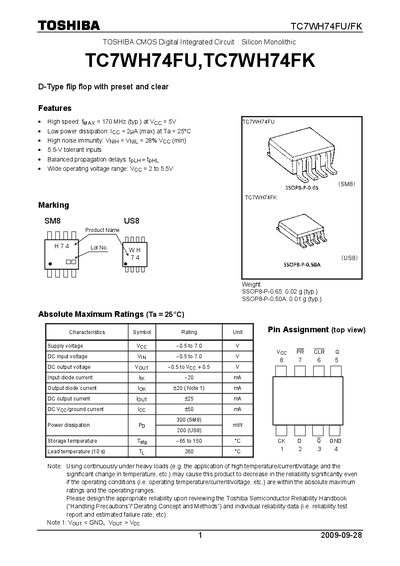

TC7WH74FU/FK is a D-Type flip flop with preset and clear produced by Toshiba. It has the characteristics of high speed, low power consumption, high noise immunity, 5.5-V tolerant inputs, balanced propagation delays, and wide operating voltage range.
The TC7WH74FU/FK is a CMOS D‑type flip‑flop with preset and clear functions. It provides high‑speed operation up to 170 MHz, low power dissipation (2 µA max) and a wide supply voltage range of 2.0 V to 5.5 V, making it suitable for general electronics applications.
The device is offered in two SSOP8 packages (0.65 mm and 0.50 mm pitch) with typical masses of 0.02 g and 0.01 g. Detailed electrical, timing and AC characteristics are provided, along with usage restrictions and reliability guidelines.
| Supply voltage range | 2.0 V to 5.5 V |
|---|---|
| Typical maximum clock frequency | 170 MHz |
| Quiescent supply current | 2 µA (max) |
| Package dimensions (SSOP8‑P‑0.65) | 2.94 mm × 0.65 mm × 1.0 mm |
The device operates from 2.0 V up to 5.5 V.
It can run at up to 170 MHz typical.
Approximately 2.94 mm × 0.65 mm × 1.0 mm.
The quiescent current is about 2 µA at 5 V.
