The TC74VCX16373FT is a high-performance CMOS 16-bit D-type latch. Designed for use in 1.8-V, 2.5-V or 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. It is also designed with overvoltage tolerant inputs and outputs up to 3.6 V. This 16-bit D-type latch is controlled by a latch enable input (LE) and an output enable input (OE) which are common to each byte. It can be used as two 8-bit latches or one 16-bit latch. When the OE input is high, the outputs are in a high-impedance state. All inputs are equipped with protection circuits against static discharge.
The TC74VCX16373FT is a high‑performance CMOS 16‑bit D‑type latch designed for 1.8‑V, 2.5‑V or 3.3‑V systems. It offers low‑power dissipation, over‑voltage‑tolerant I/O up to 3.6 V, and can be used as two 8‑bit latches or a single 16‑bit latch. The device includes protection against static discharge on all inputs.

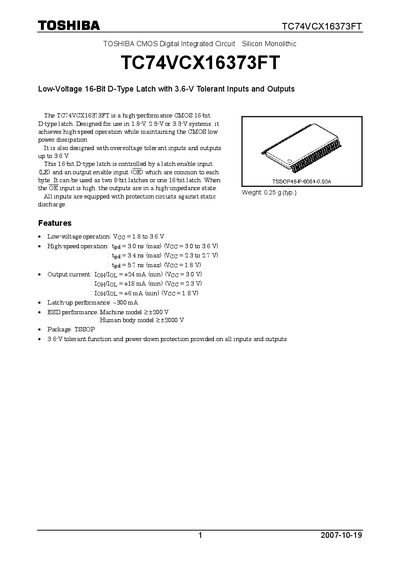

The datasheet provides detailed electrical characteristics, absolute maximum ratings, AC and dynamic switching parameters, as well as package dimensions for the TSSOP48‑P‑0061‑0.50A package. It also outlines recommended usage restrictions and compliance information.
