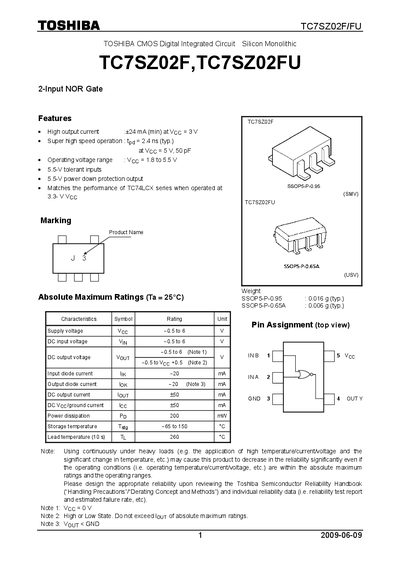

TC7SZ02F/FU is a CMOS digital integrated circuit with features such as high output current, super high speed operation, and wide operating voltage range.
The TC7SZ02F/FU is a 2‑input NOR gate from Toshiba Semiconductor, designed for general electronics applications such as computers, office equipment, and industrial robots. It offers high output current and fast propagation delay, making it suitable for high‑speed logic circuits.
Key specifications include a supply voltage range of 1.8 V to 5.5 V, typical output current of 50 mA, and a propagation delay of 2.4 ns. The device is offered in SSOP5‑P packages with typical weights of 0.016 g (0.95 mm pitch) and 0.006 g (0.65 mm pitch). The datasheet also outlines operating temperature limits and usage restrictions.
| High output current | 24 mA (min) at Voc = 3 V |
|---|---|
| Propagation delay (typical) | 2.4 ns |
| Supply voltage range | 1.8 V to 5.5 V |
| Input voltage range | 0 V to 5.5 V |
| Power dissipation | 200 mW |
| Typical weight (SSOP5‑P‑0.95) | 0.016 g |
| Operating temperature range | -40 °C to 85 °C |
The device can source up to 50 mA of output current.
The typical propagation delay is 2.4 ns.
It operates with a supply voltage from 1.8 V to 5.5 V.
The part is offered in SSOP5‑P‑0.95 (≈0.016 g) and SSOP5‑P‑0.65A (≈0.006 g) packages.
