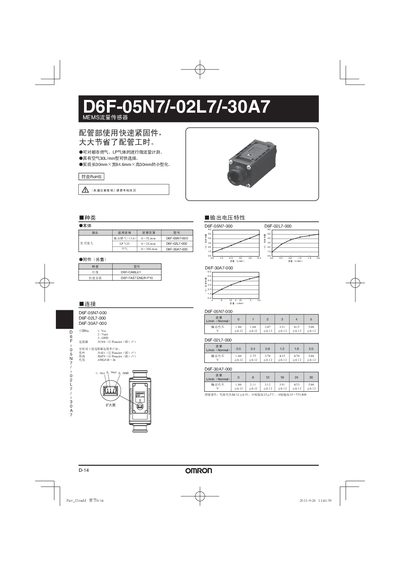

D6F-05N7/-02L7/-30A7 MEMS flow sensors can be used to measure micro flow rates of urban gas and LP gas. They are characterized by miniaturization and quick fasteners.
This manual describes the Omron D6F series MEMS flow sensors, covering three variants (D6F-05N7, D6F-02L7, D6F-30A7) that measure flow rates from a few liters per minute up to 30 L/min. It includes mechanical dimensions, connector details, and recommended installation practices.
Technical data such as supply voltage, operating temperature range, pressure rating, and electrical pin assignments are listed, along with wiring diagrams for the Molex connectors used with the sensors. The document also outlines environmental limits for storage and operation. This manual is written in Japanese.
| Operating temperature | -10 °C to +60 °C |
|---|---|
| Storage temperature | -40 °C to +80 °C |
| Maximum pressure rating | 300 kPa |
The sensor can operate between –10 °C and +60 °C.
The sensor is rated for up to 300 kPa pressure.
