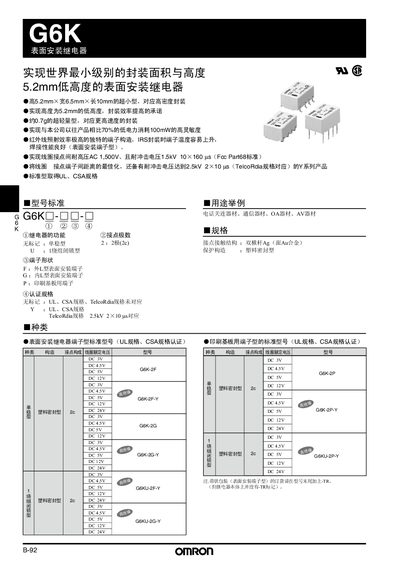

This document introduces a super miniature surface mount relay called G6K, which has features such as low height, low power consumption, and high sensitivity.
The document describes the G6K series surface‑mount relays, including their electrical ratings, mechanical dimensions, and available variants such as G6K‑2F, G6K‑2G, and G6K‑2P. It lists performance data like rated voltage, current, power consumption, and insulation resistance, and references UL and CSA certifications.
Installation and handling sections cover packaging formats (rod and tape), recommended soldering temperatures, mounting clearances, environmental limits (‑40 °C to +70 °C), and reliability testing procedures. Guidance on moisture‑sealed packaging, coil voltage limits, and cleaning agents is also provided. This manual is written in Chinese.
| Contact rating (AC) | 125 V 0.3 A |
|---|---|
| Power consumption | ≈100 mW |
| Insulation resistance | ≥1 000 MΩ |
A tape roll contains 900 relays.
Use about 250 °C for leaded soldering and up to 260 °C for lead‑free processes.
The relays operate from –40 °C to +70 °C.
