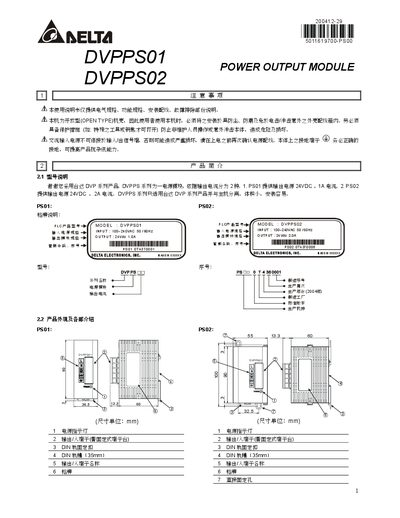

This document is the user manual of DVPPS01, DVPPS02 power supply module.
The DVPPS01 and DVPPS02 are open‑type power output modules that deliver a regulated 24 VDC output, with a maximum current of 1 A for the DVPPS01 and 2 A for the DVPPS02. They are intended for use with Delta DVP series PLCs and feature compact dimensions for easy DIN‑rail mounting.
The modules must be installed in a dust‑proof, moisture‑proof enclosure and secured with a special tool or key to prevent unauthorized access. The manual details wiring procedures, grounding requirements, environmental limits, and fault‑diagnosis steps using the POWER LED indicator. This manual is written in Chinese.
| Input voltage range | 100~240 VAC, 50/60 Hz |
|---|---|
| Output voltage (DVPPS01/DVPPS02) | 24 VDC (±3%) |
| Maximum output current (DVPPS01) | 1 A |
| Maximum output current (DVPPS02) | 2 A |
| Ripple & noise (DVPPS01) | < 100 mV p‑p at full load |
| Ripple & noise (DVPPS02) | < 240 mV p‑p at full load |
| Efficiency (full load) | 78%–87% |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -25 °C to 70 °C |
The modules accept an AC input voltage of 100 V to 240 V at 50 Hz or 60 Hz.
DVPPS01 provides a 24 VDC output with a maximum current of 1 A.
Install the module in a dust‑proof, moisture‑proof enclosure, secure it with a special tool or key, and ensure proper grounding with wires no smaller than the power leads.
