DTC1000/2000 series digital controllers are products developed by Delta, which support multiple input and output methods and RS-485 communication. They can be widely used in industrial control fields.

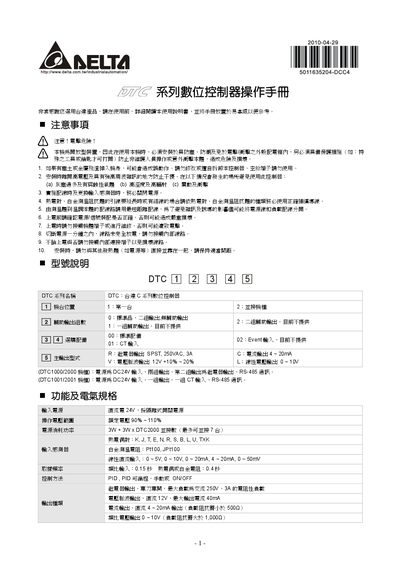

This manual provides safety instructions, installation guidelines, and wiring details for Delta DTC series temperature controllers. It explains how to mount the unit in a dust‑proof, moisture‑proof enclosure, avoid dust, corrosive gases, high humidity, and vibration, and outlines power‑up procedures.
The document also describes the controller’s features: supported input sensors (thermocouples and Pt100/JPt100 RTDs), selectable output types (relay, voltage pulse, current 4‑20 mA, linear voltage), RS‑485 Modbus communication, alarm functions, password protection levels, and programming of PID, ON/OFF, and custom patterns. This manual is written in Chinese.
| Relay Output | SPST, 250 VAC, 3 A |
|---|---|
| Voltage Pulse Output | 12 V ±10%~20% |
| Linear Voltage Output | 0 ~ 10 V |
| Supported Thermocouples | K, J, T, E, N, R, S, B, L, U, TXK |
