DTB series temperature controller is an open type temperature controller launched by Delta, with 4824, 4848, 4896, 9696 four specifications. It can choose relay output, voltage pulse output, DC current output, linear voltage output, and can also choose CT, EVENT input, valve position control and other optional accessories.

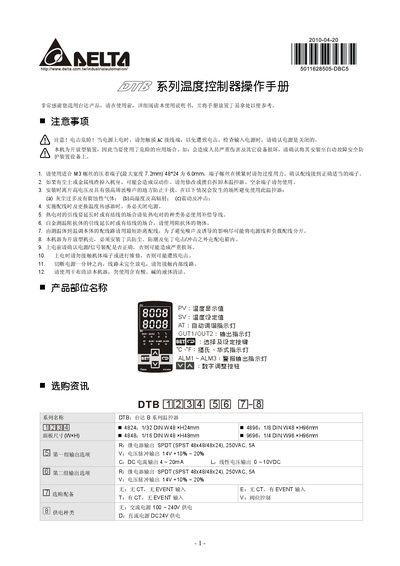

This manual provides detailed instructions for installing, wiring, and configuring Delta DTB series temperature controllers. It includes safety precautions, power requirements, panel dimensions, output options, sensor selections, and environmental limits.
The document also describes alarm functions, PID programming, valve‑position control, and Modbus (ASCII/RTU) communication settings, along with register maps for parameter configuration and troubleshooting. This manual is written in Chinese.
| Input power (AC) | 100‑240 V, 50/60 Hz |
|---|---|
| Power consumption | < 5 VA |
| Panel size (DTB4824) | W48 mm × H24 mm (1/32 DIN) |
| Relay output | 250 VAC, 5 A, SPDT (48×48/48×24 mm) |
| Voltage‑pulse output | 14 V ±10 % ~ 20 % (DC) |
| Current output | 4 ~ 20 mA (DC) |
| Linear voltage output | 0 ~ 10 V DC |
| Supported thermocouples | K, J, T, E, N, R, S, B, L, U, TXK |
| Supported resistance sensors | Pt100, JPt100 |
| Operating temperature range | 0 °C ~ +50 °C |
| Storage temperature range | -20 °C ~ +65 °C |
| Panel protection rating | IP65 |
| Communication baud rates | 2400‑38400 bps |
| Communication protocol | Modbus ASCII/RTU |
| Number of alarm outputs | Up to 3 groups (18 modes each) |
The controller supports up to three alarm output groups, each with eighteen selectable alarm modes.
Supported baud rates are 2400, 4800, 9600, 19200 and 38400 bps.
