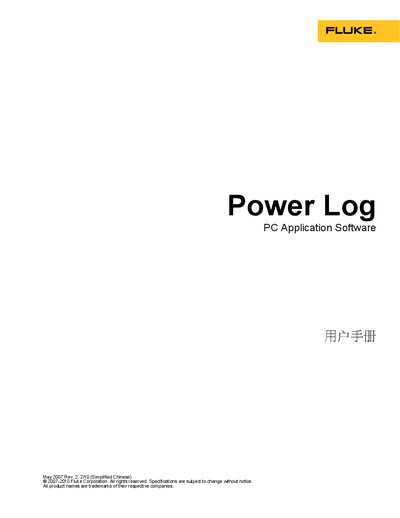

This document is the user manual for Fluke Power Log PC Application Software. The manual provides information about the software's license agreement and how to use it, as well as the steps to connect to power quality instruments and download data. It also includes the software's menu options and features, such as printing, copying, scaling, and data analysis. The manual provides detailed explanations of each tab, such as Harmonics, Power, Transients, and Flicker. Finally, it explains how to print reports and export data.
This manual describes the Fluke Power Log software, which allows users to download measurement data from Fluke devices (345, 435, VR1710, 1735, etc.) to a PC, generate data tables, view waveforms, and print reports. It covers installation on Windows XP and Vista, system requirements, and basic operation of the program.
The document also includes details on exporting data to other applications such as Excel, printing options, and contact information for technical support in the United States, Europe, Japan, Singapore and other regions. This manual is written in Japanese.
| Minimum RAM | 10 MB (recommended >50 MB) |
|---|---|
| Minimum Screen Resolution | 800 × 600 pixels (recommended 1024 × 768) |
Call the US support line at 1‑800‑44‑FLUKE (1‑800‑443‑5853) or use the regional phone numbers listed in the manual.
A PC must have at least 10 MB of RAM (more than 50 MB recommended), a screen resolution of 800 × 600 (1024 × 768 recommended), a USB or RS‑232 port, and run Windows XP or Vista.
Yes, the software can export data so it can be processed in other programs such as Microsoft Excel.
Power Log works with Fluke 345, 435, VR1710, 1735 and, if the optional 434 function is installed, also with Fluke 433 and 434.
