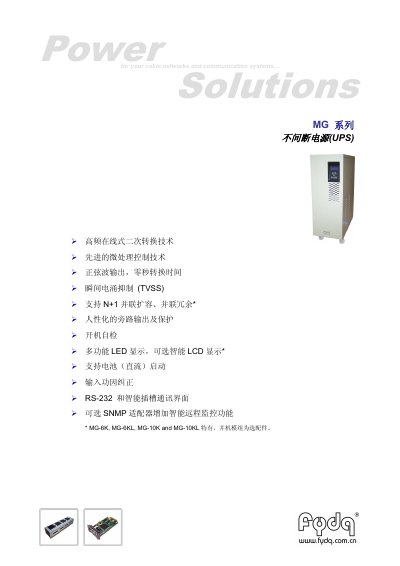

This document introduces the features and characteristics of the MG series uninterruptible power supply, including high-frequency online double conversion technology, advanced microprocessor control technology, sine wave output, instant surge suppression, support for N+1 parallel expansion and parallel redundancy, and user-friendly bypass output and protection.
The MG series UPS offers high‑frequency online double‑conversion technology, micro‑processor control, sine‑wave output with zero‑second transfer, and instant surge suppression. It supports N+1 parallel expansion, intelligent LCD or LED displays, RS‑232 and smart‑slot communications, and optional SNMP adapters for remote monitoring.
Rated models range from 1 kVA to 10 kVA, with input voltage ranges of 115‑300 VAC (1‑3 kVA) or 176‑276 VAC (6‑10 kVA), built‑in or external valve‑regulated lead‑acid batteries, and a conversion time of 0 ms. Dimensions, weight, and environmental limits are listed for each model, and a variety of optional accessories such as multi‑function outlets and different plug types are available. This manual is written in Chinese.
| Input Voltage Range (1‑3 kVA) | 115‑300 VAC |
|---|---|
| Input Voltage Range (6‑10 kVA) | 176‑276 VAC |
| Battery Type | Valve‑regulated lead‑acid (maintenance‑free) |
| Conversion Time | 0 ms |
| Overload Capacity (1‑3 kVA) | 110%‑150% for 30 s |
The MG‑1K accepts an input voltage from 115 VAC to 300 VAC.
It switches to bypass after 30 seconds for overloads of 110%‑150%, and after 300 ms for overloads above 150%.
It uses a valve‑regulated lead‑acid maintenance‑free battery, either built‑in or external.
