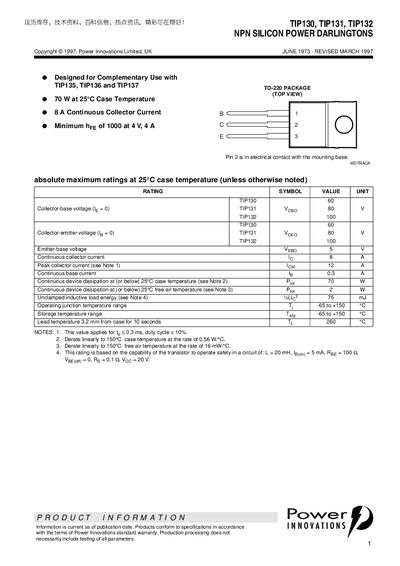

TIP130, TIP131, TIP132 are NPN silicon power Darlingtons manufactured by Power Innovations. They have a maximum power dissipation of 70 W, a maximum collector current of 8 A and a minimum hFE of 1000.
The TIP130, TIP131, and TIP132 are NPN silicon power Darlington transistors designed for complementary use with TIP135‑TIP137. They are supplied in a TO‑220 plastic flange‑mount package and are intended for high‑power applications up to 70 W at 25 °C case temperature.
The document lists absolute maximum ratings, typical electrical characteristics, thermal resistance values, mechanical dimensions, and safety notices. Key parameters include collector‑emitter voltage ratings of 60 V, 80 V and 100 V respectively, a continuous collector current of 8 A, and a junction temperature range of –65 °C to +150 °C.
| Continuous Collector Current (Ic) | 8 A |
|---|---|
| Operating Junction Temperature Range | -65 °C to +150 °C |
| Package Type | TO‑220 |
All three devices are rated for a continuous collector current of 8 A.
They are supplied in a TO‑220 plastic flange‑mount package.
