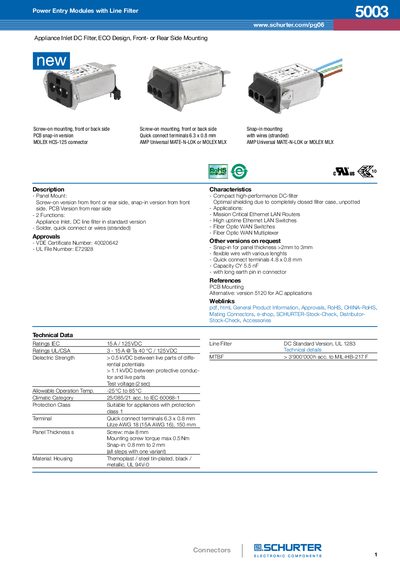

This is a SCHURTER 5003 power entry module with line filter. It can be installed on the front or rear panel. It has a high-performance DC filter
Schurter Power Entry Modules combine a compact high‑performance DC line filter with flexible mounting options. They are available in screw‑on, snap‑in, and PCB versions for front‑ or rear‑side installation, and support connectors such as Molex HCS‑125, AMP Universal MATE‑N‑LOK, and Molex MLX.
Technical data include rated currents of 3 A, 6 A, 10 A and 15 A at 125 VDC, a temperature range of –25 °C to 86 °C, dielectric strength over 0.5 kVDC, and attenuation loss of 0.01 dB. Approvals include VDE certificate 40020642 and UL file E72928.
| Voltage | 125 VDC |
|---|---|
| Operating Temperature | -25 °C to 86 °C |
| Dielectric Strength | > 0.5 kVDC |
They can be mounted front‑ or rear‑side using screw‑on, snap‑in, or PCB versions, with pre‑formed M3 holes for screws.
Compatible connectors include Molex HCS‑125, AMP Universal MATE‑N‑LOK, and Molex MLX.
The modules operate from –25 °C up to 86 °C.
