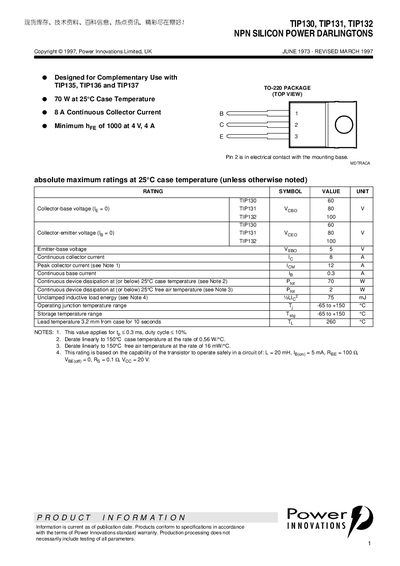

TIP130, TIP131, TIP132 are NPN silicon power Darlington transistors designed for complementary use with TIP135, TIP136 and TIP137. They have a power rating of 70W at 25°C case temperature, continuous collector current of 8A, and minimum hFE of 1000 at 4V, 4A. The product information is current as of March 1997.
The TIP130, TIP131, and TIP132 are NPN silicon power Darlington transistors designed for high‑current applications. They are supplied in a TO‑220 plastic package and are intended for complementary use with TIP135‑TIP137 devices.
The document provides absolute maximum ratings, typical electrical characteristics, thermal resistance values, and mechanical dimensions, along with safety notices and warranty information.
| Collector‑Base Voltage (Vcb) TIP131 | 80 V |
|---|---|
| Collector‑Emitter Voltage (Vceo) TIP131 | 80 V |
| Continuous Collector Current (Ic) | 8 A |
| Peak Collector Current (Icm) | 12 A |
| Continuous Base Current (Ib) | 0.3 A |
| Unclamped Inductive Load Energy | 75 mJ |
| Operating Junction Temperature Range | -65 °C to +150 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Lead Temperature (10 s) | 260 °C |
| Junction‑to‑Case Thermal Resistance | 1.78 °C/W |
| Junction‑to‑Free‑Air Thermal Resistance | 62.5 °C/W |
| Package Type | TO‑220 |
| Mounting Tab Height (Version 1) | 18.0 mm |
| Mounting Tab Height (Version 2) | 17.6 mm |
All three devices are rated for a continuous collector current of 8 A.
They are supplied in a TO‑220 plastic flange‑mount package.
