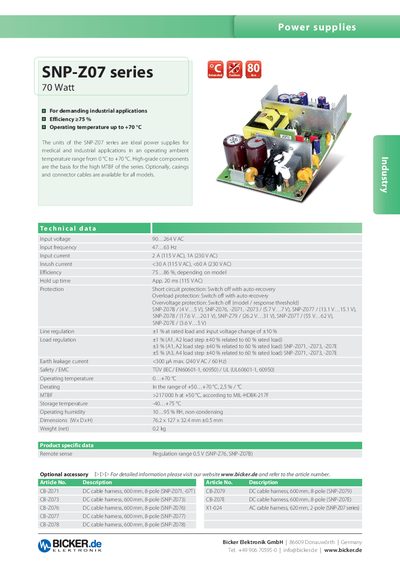

SNP-Z07 series 70 Watt High efficiency Suitable for demanding industrial applications Operating temperature up to +70 °C
This manual describes the Bicker SNP‑Z07 series of 70 W power supplies, which are intended for demanding industrial and medical equipment operating from 0 °C to +70 °C. It covers input requirements, output voltage options, protection functions, and optional accessories such as cable harnesses.
Key data include an input voltage range of 90‑264 VAC, efficiency up to 86 %, dimensions of 76.2 × 127 × 32.4 mm, and a weight of 0.2 kg. The document also provides connector pin‑outs, remote‑sense wiring, and compliance with IEC/EN60601‑1 and UL standards.
| Input voltage | 90‑264 VAC |
|---|---|
| Input frequency | 47‑63 Hz |
| Efficiency | 75‑86 % |
| Output voltage (SNP‑Z07B) | 4‑5 V |
| Dimensions (W×D×H) | 76.2 × 127 × 32.4 mm |
| MTBF | >217 000 h at +50 °C |
| Operating temperature range | -40 °C to +475 °C |
| Storage humidity | 10‑95 % RH (non‑condensing) |
The units accept an input voltage from 90 VAC to 264 VAC.
They include short‑circuit, overload, and over‑voltage protection that switch off automatically with auto‑recovery.
Each unit measures 76.2 mm × 127 mm × 32.4 mm (plus 0.5 mm tolerance).
The series meets IEC/EN60601‑1, IEC/EN60950, and UL60601‑1 safety and EMC standards.
