TIP125, TIP126, TIP127 are three PNP silicon power Darlingtons with an operating temperature of 25°C, a rated power of 65W, and a maximum collector current of 5 A.

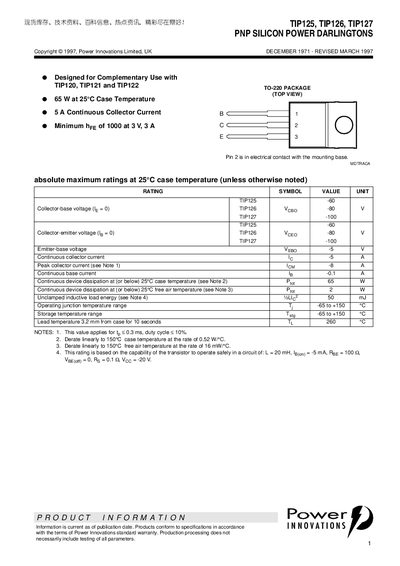

This datasheet provides detailed information for the TIP125, TIP126, and TIP127 PNP silicon power Darlington transistors manufactured by Power Innovations. It includes electrical characteristics, thermal limits, mechanical dimensions, and safety notices.
Key specifications such as collector‑emitter voltage, continuous collector current, power dissipation, junction temperature range, and package type are listed, along with typical characteristic curves and maximum safe operating regions.
| Collector‑emitter voltage (Vceo) | 60 V (TIP125), -80 V (TIP126), -100 V (TIP127) |
|---|---|
| Continuous collector current (Ic) | 5 A |
| Operating junction temperature range | -65 °C to +150 °C |
| Package type | TO‑220 |
The maximum continuous collector current is 5 A.
They are housed in a TO‑220 package.
The junction can operate from –65 °C up to +150 °C.
