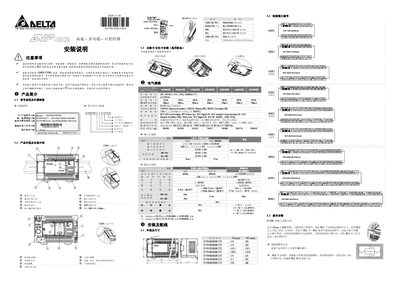

This manual introduces the installation instructions of the high-speed multi-function programmable controller, including precautions, product overview, electrical specifications, etc.
This manual provides the installation instructions for Delta's DVP‑EH2 series programmable logic controller. It includes safety precautions, wiring diagrams for power, input, and output terminals, and guidelines for mounting the unit in a protected enclosure.
The document also describes how to connect power supplies, configure input/output modules, and interpret panel LEDs for normal operation, errors, and battery status. Troubleshooting tips and recommended protection circuits are included to ensure reliable system performance. This manual is written in Chinese.
| Input power voltage | 100~240VAC, 50/60Hz |
|---|---|
| Output module rating | 2.0A, 250VAC, 50/60Hz |
| Power fuse rating | 2A / 250VAC |
| Power consumption | 50VA |
| Surge voltage tolerance | 1500VAC (primary/secondary) |
| Input signal voltage | 24VDC+ |
| Minimum output load | -2mA |
The PLC accepts an AC input voltage of 100 to 240 V at 50 Hz or 60 Hz.
