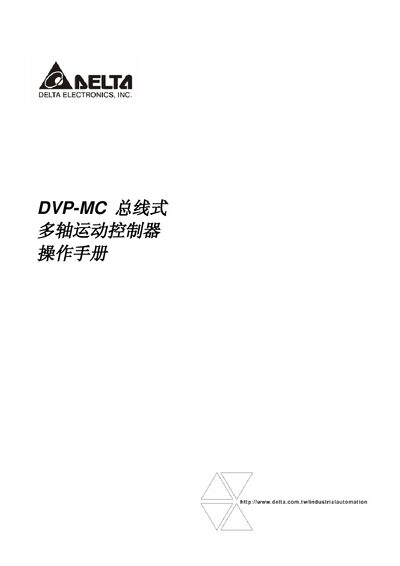

This manual explains the functions, system architecture, installation, command set and troubleshooting for the Delta DVP10MC11T multi‑axis motion controller.
The DVP10MC11T is a high‑performance multi‑axis motion controller developed by Delta. It supports up to 16 axes, includes a standard PLC module, and offers extensive communication options such as CANopen, DeviceNet, RS‑232/RS‑485, Ethernet and encoder interfaces. The controller is designed for automation applications like packaging, printing, cutting and CNC machines.
The manual provides a product overview, detailed system function description, electrical specifications, wiring diagrams, a full list of motion, logic and application commands, as well as error‑troubleshooting guidance and appendices for Modbus and Ethernet communication. This manual is written in Chinese.
| Power supply voltage | 24 VDC (-15% ~ +20%) |
|---|---|
| Input channels | 8 digital input channels |
| Output channels | 4 transistor (source) output channels |
| Input delay time | 2.5 µs (Off→On), 5 µs (On→Off) |
| Output delay time | 2 µs (Off→On), 3 µs (On→Off) |
| Maximum switching frequency | 1 kHz |
| Operating temperature range | 0 °C ~ 55 °C |
| Storage temperature range | -25 °C ~ 70 °C |
It can control up to 16 axes, including virtual and mirrored axes.
See section 5.1 "LED灯指示说明" for a description of the LED indicators.
