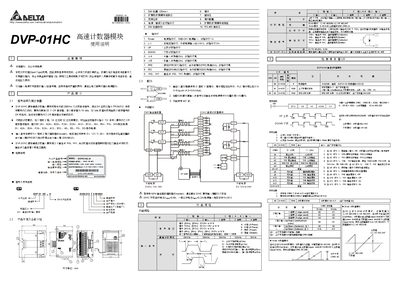

DVP-01HC high-speed counter module user manual, including precautions, product introduction, nameplate instructions, model and serial number instructions, product appearance and each part introduction, indicator light
This manual provides safety instructions, hardware specifications, and wiring details for the Delta DVP-01HC high‑speed counter module. It describes the required power supply, input signal levels, and the two output channels (YHO and YH1) used for counting applications.
The document also covers register configuration, RS‑485 communication settings, LED indicator functions, and troubleshooting steps to ensure proper integration with Delta EH series controllers. This manual is written in Japanese.
| Power Input | 24 V DC, 3 W |
|---|---|
| Input Level | 5 V DC / 12 V DC / 24 V DC, up to 200 kHz |
| Output Module | 0‑10 kHz, 0.5 A |
| Output Channels | Two (YHO, YH1) |
The module needs a 24 V DC supply and consumes about 3 W.
It accepts 5 V, 12 V or 24 V DC signals with frequencies up to 200 kHz.
The module provides two independent output points, labeled YHO and YH1.
