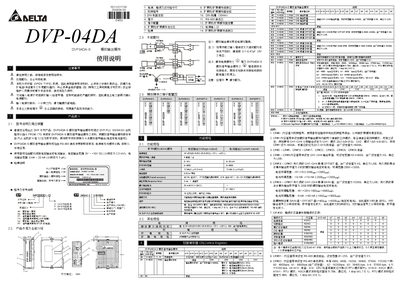

This manual provides usage instructions for the Delta DVP04DA-S analog output module, covering specifications, wiring, control registers, and troubleshooting.
The Delta DVP04DA-S is a 4-channel analog signal output module designed for use with DVP-PLC SS/SA/SX series hosts. It converts digital data from the PLC into four separate analog signals, supporting both voltage (0V to +10V DC) and current (0 mA to 20 mA) outputs with selectable ranges via configuration. This manual is written in Chinese.
| Analog Output Channels | 4 channels / unit |
|---|---|
| Voltage Output Range | 0V ~ +10V DC |
| Current Output Range | 0 mA ~ 20 mA |
| Resolution (Voltage) | 12 bits (1 LSB=2.5 mV) |
| Resolution (Current) | 12 bits (1 LSB=5 µA) |
| Power Supply Voltage | 24 VDC (20.4V~28.8V) |
| Overall Accuracy | ±0.5% of full scale at 25°C |
The module supports four modes: 0V~10V voltage, 2V~10V voltage, 4mA~20mA current, and 0mA~20mA current.
No, it is specifically designed for use with DVP-PLC SS/SA/SX series hosts.
Up to 8 units can be connected, numbered automatically from 0 to 7.
