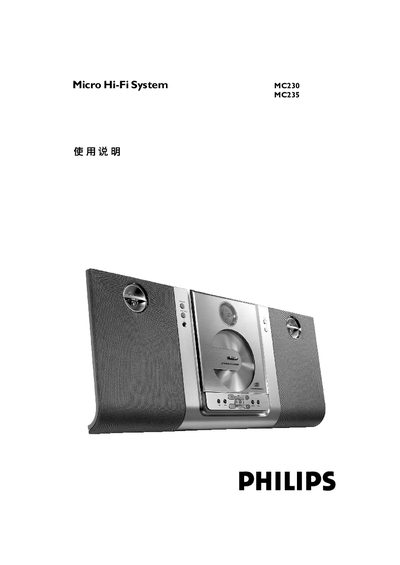

This manual describes how to use the Micro Hi-Fi System MC230 MC235.
This manual provides safety guidelines, environmental information, and step‑by‑step setup instructions for the Philips MC230 and MC235 Micro Hi‑Fi systems. It covers connecting power, antennas, speakers and optional accessories, as well as preparing the remote control and inserting batteries.
The document details basic functions such as power on/off, source selection, volume control, CD playback modes, timer and clock settings, and includes maintenance tips, technical specifications, and a troubleshooting guide for common issues like disc errors or radio reception problems. This manual is written in Chinese.
| Output Power | 200 W |
|---|---|
| Signal‑to‑Noise Ratio | ≥ 62 dB (IEC) |
| Frequency Response | 63 – 16000 Hz ± 3 dB |
| Input Sensitivity (AUX) | 0.5 V (max 2 V) |
| Speaker Impedance | 4 Ω |
| Headphone Impedance | 32 Ω |
| Standby Power Consumption | < 6 W |
| Weight (with speakers) | 4.1 kg |
Open the plastic cover on the remote, remove the old CR2025 lithium battery and insert a new CR2025 battery, then close the cover.
Insert a disc, check that it is not upside‑down, wait for any condensation on the laser lens to evaporate, and clean or replace the disc if necessary.
Check that the speakers are correctly connected and the speaker wires are securely clamped, adjust the volume, and verify that the speaker impedance matches the specified 4 Ω.
Adjust the position of the MW antenna, keep it away from TV or video equipment, or connect an outdoor FM antenna for better signal strength.
