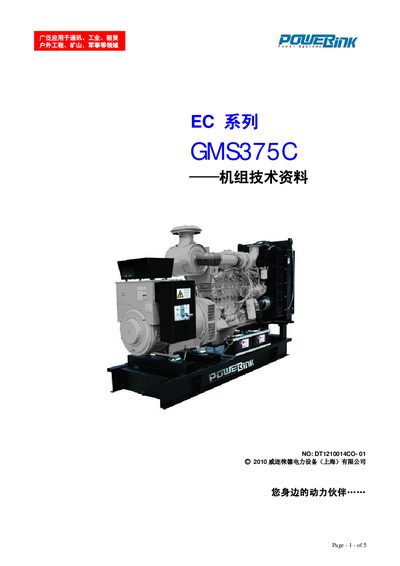

This document is the product manual of GMS375C generator set produced by Powerlink Power Equipment (Shanghai) Co., Ltd. It mainly introduces the characteristics and performance parameters of the generator set.
The GMS375C is a three‑phase generator set designed for industrial use. It operates at 50 Hz with a rated speed of 1500 rpm and provides up to 400 kVA of power. The unit includes features such as low‑oil‑level protection, emergency stop, and a built‑in LCD for monitoring.
Key specifications include a rated voltage of 380 V, rated current of 300 A, weight of 1270 kg, and overall dimensions of 3093 × 1280 × 1845 mm. The generator complies with standards such as ISO 3046, ISO 8528, BS 4999, and VDE, and offers options for custom fuel tank capacity and cooling system configurations. This manual is written in Japanese.
| Frequency | 50 Hz |
|---|---|
| Rated Speed | 1500 rpm |
| Rated Voltage | 380 V |
| Rated Current | 300 A |
| Rated Power (kW) | 375 kW |
| Rated Power (kVA) | 400 kVA |
| Weight | 1270 kg |
| Maximum Cooling Water Temperature | 96 °C |
The GMS375C runs at a rated speed of 1500 rpm.
The generator is rated at 400 kVA (approximately 375 kW).
