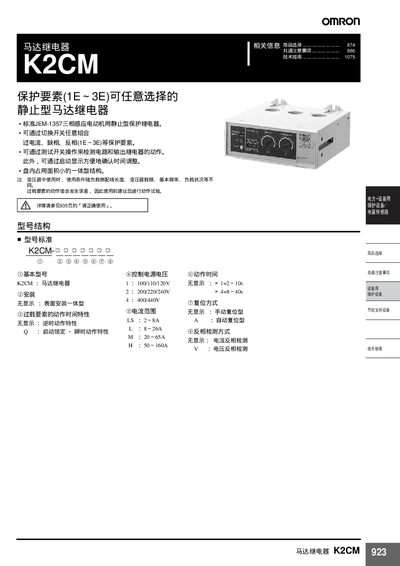

Motor Relay K2CM 923 is a static motor relay that can combine overcurrent, phase loss, reverse phase and other protection elements through switching. It has a compact integrated structure and can detect the operation of the circuit and output relay through the test switch.
This manual describes the features and protection functions of the Omron K2CM motor relay, including overload, phase‑loss, and reverse‑phase detection. It explains how to select the appropriate model, configure the control supply voltage, and adjust timing settings.
The document also covers installation details such as terminal configuration, wiring diagrams, torque specifications, and recommended maintenance procedures to ensure reliable long‑term operation. This manual is written in Chinese.
| Contact rating (LA) | AC120 V/2 A, AC240 V/1 A, AC440 V/0.5 A |
|---|---|
| Weight | 780 – 800 g |
| Operating temperature range | -10 °C to +60 °C |
| Operating humidity range | 35 %–85 % RH |
Use the test switch to operate the circuit and observe the output relay action for overload, phase‑loss, and reverse‑phase detection.
The terminal screw tightening torque should be set to 0.98 N·m (or 177 N·mm) as specified.
The relay is rated for use from –10 °C up to +60 °C.
